How ESP32
RAM works

/*
 * We stand on the shoulders of giants when we build
 * with knowledge gained from others' efforts.
 * That doesn't make us giants. Be humble.
 * Create with care. Open source is the way.
 *

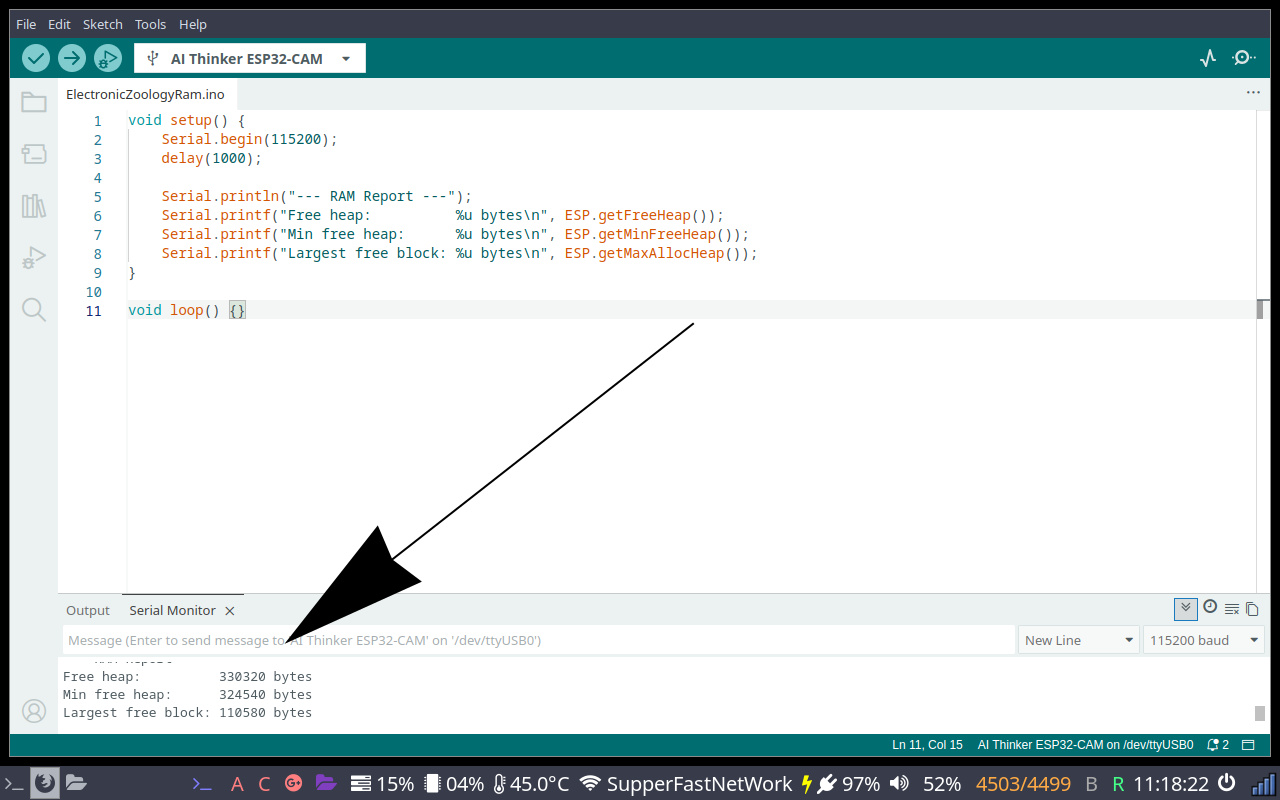

 * ESP32 RAM Report
 * ----------------
 * Report free heap, minimum heap, and largest free block.
 *
 * Board:   Any ESP32
 *
 * Open source - MIT Licence
 * Electronic Zoology - field notes from the garage
 * https://electroniczoology.com/guides/how-esp32-ram-works
 */

void setup() {
    Serial.begin(115200);
    delay(1000);

    Serial.println("--- RAM Report ---");
    Serial.printf("Free heap:          %u bytes\n", ESP.getFreeHeap());
    Serial.printf("Min free heap:      %u bytes\n", ESP.getMinFreeHeap());
    Serial.printf("Largest free block: %u bytes\n", ESP.getMaxAllocHeap());
}

void loop() {}

/*
 * We stand on the shoulders of giants when we build
 * with knowledge gained from others' efforts.
 * That doesn't make us giants. Be humble.
 * Create with care. Open source is the way.
 *
 * GC9A01 Round TFT Display - Starfield
 * -------------------------------------
 * Renders a 150-star warp speed starfield on a
 * GC9A01 240x240 round IPS TFT display via SPI.
 *
 * Board:   AI Thinker ESP32-CAM (Dev Board/WROVER pins commented out)
 * Library: Arduino_GFX_Library by Moon On Our Nation
 *
 * Wiring (ESP32-CAM):
 *   VCC -> 3.3V    GND -> GND
 *   SCL -> GPIO14  SDA -> GPIO13
 *   DC  -> GPIO2   CS  -> GPIO15
 *   RST -> GPIO16
 *
 * Open source - MIT Licence
 * Electronic Zoology - field notes from the garage
 * https://electroniczoology.com/guides/how-esp32-ram-works
 */

#include <Arduino_GFX_Library.h>

// ESP32-CAM pins - camera uses default SPI (18/23) so SCK/MOSI moved to 14/13
#define TFT_DC   2
#define TFT_CS  15
#define TFT_RST 16
#define TFT_SCK 14
#define TFT_MOSI 13

// ESP32 Dev Board / WROVER pins:
// #define TFT_DC  27
// #define TFT_CS   5
// #define TFT_RST  4
// #define TFT_SCK 18
// #define TFT_MOSI 23

// ESP32-CAM: SCK and MOSI passed explicitly - hardware SPI defaults (18/23) are camera pins
Arduino_DataBus *bus = new Arduino_HWSPI(TFT_DC, TFT_CS, TFT_SCK, TFT_MOSI);
Arduino_GFX *gfx = new Arduino_GC9A01(bus, TFT_RST, 0, true);

#define CX        120
#define CY        120
#define NUM_STARS 150
#define SPEED     3.5f

struct Star { float x, y, z; int px, py; };
Star stars[NUM_STARS];

void resetStar(Star &s) {
  s.x = random(-120, 120);
  s.y = random(-120, 120);
  s.z = random(60, 240);
  s.px = -1; s.py = -1;
}

uint16_t grey(uint8_t v) {
  return ((v >> 3) << 11) | ((v >> 2) << 5) | (v >> 3);
}

void drawTitle() {
  gfx->setTextColor(0xFFFF);
  gfx->setTextSize(2);
  gfx->setCursor(60, 100); gfx->print("Electronic");
  gfx->setCursor(54, 122); gfx->print("Zoology.com");
}

void setup() {
  pinMode(4, OUTPUT);       // ESP32-CAM: GPIO 4 is LED flash - pull low to prevent boot glitch
  digitalWrite(4, LOW);
  Serial.begin(115200);
  randomSeed(analogRead(0));
  gfx->begin();
  gfx->fillScreen(0x0000);
  for (int i = 0; i < NUM_STARS; i++) {
    resetStar(stars[i]);
    stars[i].z = random(1, 240);
  }
}

void loop() {
  for (int i = 0; i < NUM_STARS; i++) {
    Star &s = stars[i];
    if (s.px >= 0) gfx->fillCircle(s.px, s.py, s.z > 120 ? 1 : 2, 0x0000);
    s.z -= SPEED;
    if (s.z <= 1) { resetStar(s); continue; }
    int sx = CX + (int)(s.x * 120.0f / s.z);
    int sy = CY + (int)(s.y * 120.0f / s.z);
    if (sx < 0 || sx >= 240 || sy < 0 || sy >= 240) { resetStar(s); continue; }
    uint8_t brightness = (uint8_t)((1.0f - s.z / 240.0f) * 220 + 35);
    int radius = s.z < 80 ? 2 : 1;
    gfx->fillCircle(sx, sy, radius, grey(brightness));
    s.px = sx; s.py = sy;
  }
  drawTitle();
}

/*
 * We stand on the shoulders of giants when we build
 * with knowledge gained from others' efforts.
 * That doesn't make us giants. Be humble.
 * Create with care. Open source is the way.
 *

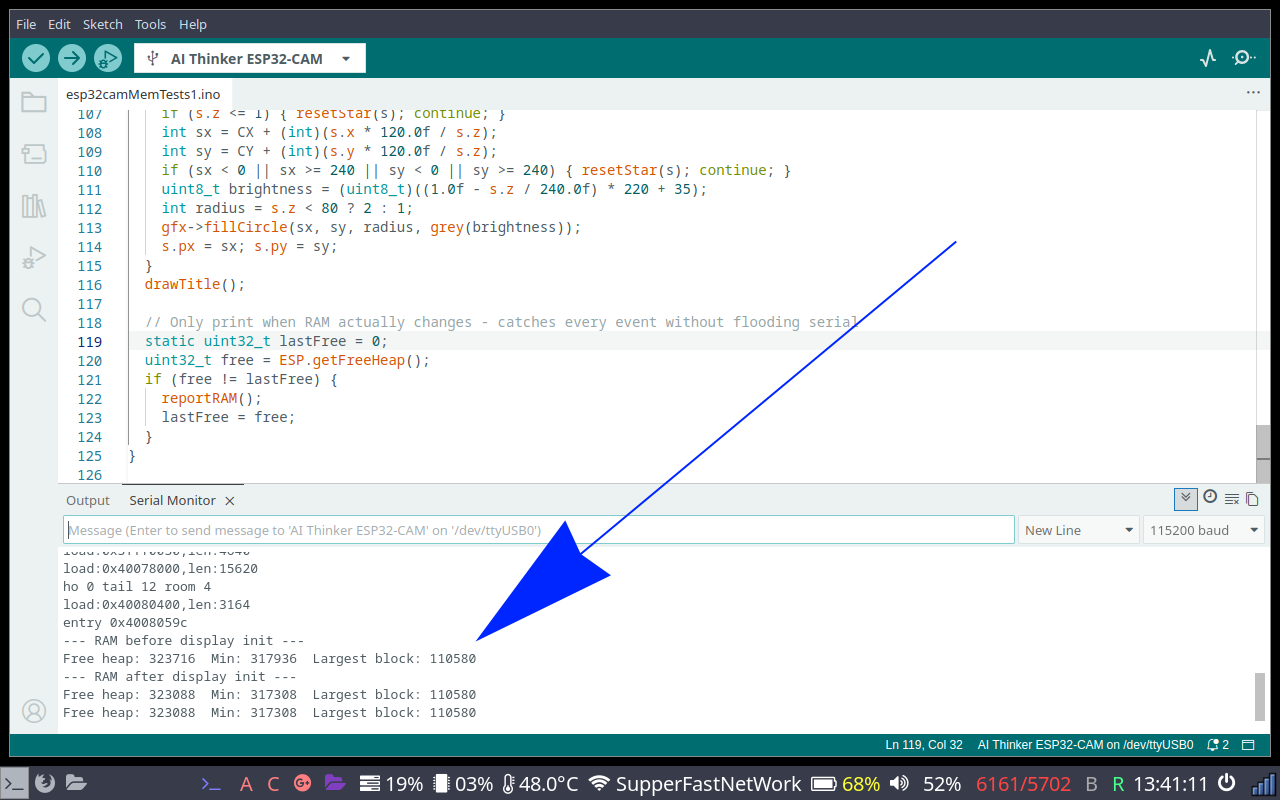

 * GC9A01 Round TFT Display - Starfield with RAM Monitoring
 * ---------------------------------------------------------
 * Starfield sketch from the GC9A01 guide, adapted for the
 * ESP32-CAM to demonstrate live RAM monitoring. Shows RAM
 * before and after display init, then on every change at runtime.
 *
 * Board:   AI Thinker ESP32-CAM (Dev Board/WROVER pins commented out)
 * Library: Arduino_GFX_Library by Moon On Our Nation
 *
 * Wiring (ESP32-CAM):
 *   VCC -> 3.3V    GND -> GND
 *   SCL -> GPIO14  SDA -> GPIO13
 *   DC  -> GPIO2   CS  -> GPIO15
 *   RST -> GPIO16
 *
 * Open source - MIT Licence
 * Electronic Zoology - field notes from the garage
 * https://electroniczoology.com/guides/how-esp32-ram-works
 */

#include <Arduino_GFX_Library.h>

// ESP32-CAM pins - camera uses default SPI (18/23) so SCK/MOSI moved to 14/13
#define TFT_DC   2
#define TFT_CS  15
#define TFT_RST 16
#define TFT_SCK 14
#define TFT_MOSI 13

// ESP32 Dev Board pins:
// #define TFT_DC  27
// #define TFT_CS   5
// #define TFT_RST  4
// #define TFT_SCK 18
// #define TFT_MOSI 23

// ESP32-CAM: SCK and MOSI passed explicitly - hardware SPI defaults (18/23) are camera pins
Arduino_DataBus *bus = new Arduino_HWSPI(TFT_DC, TFT_CS, TFT_SCK, TFT_MOSI);
Arduino_GFX *gfx = new Arduino_GC9A01(bus, TFT_RST, 0, true);

#define CX        120
#define CY        120
#define NUM_STARS 150
#define SPEED     3.5f

struct Star { float x, y, z; int px, py; };
Star stars[NUM_STARS];

void resetStar(Star &s) {
  s.x = random(-120, 120);
  s.y = random(-120, 120);
  s.z = random(60, 240);
  s.px = -1; s.py = -1;
}

uint16_t grey(uint8_t v) {
  return ((v >> 3) << 11) | ((v >> 2) << 5) | (v >> 3);
}

void drawTitle() {
  gfx->setTextColor(0xFFFF);
  gfx->setTextSize(2);
  gfx->setCursor(60, 100); gfx->print("Electronic");
  gfx->setCursor(54, 122); gfx->print("Zoology.com");
}

// RAM report helper - call anywhere you want a snapshot
void reportRAM() {
  Serial.printf("Free heap: %u  Min: %u  Largest block: %u\n",
    ESP.getFreeHeap(),
    ESP.getMinFreeHeap(),
    ESP.getMaxAllocHeap());
}

void setup() {
  pinMode(4, OUTPUT);       // ESP32-CAM: GPIO 4 is LED flash - pull low to prevent boot glitch
  digitalWrite(4, LOW);
  Serial.begin(115200);
  delay(1000);

  Serial.println("--- RAM before display init ---");
  reportRAM();

  randomSeed(analogRead(0));
  gfx->begin();
  gfx->fillScreen(0x0000);
  for (int i = 0; i < NUM_STARS; i++) {
    resetStar(stars[i]);
    stars[i].z = random(1, 240);
  }

  Serial.println("--- RAM after display init ---");
  reportRAM();
}

void loop() {
  for (int i = 0; i < NUM_STARS; i++) {
    Star &s = stars[i];
    if (s.px >= 0) gfx->fillCircle(s.px, s.py, s.z > 120 ? 1 : 2, 0x0000);
    s.z -= SPEED;
    if (s.z <= 1) { resetStar(s); continue; }
    int sx = CX + (int)(s.x * 120.0f / s.z);
    int sy = CY + (int)(s.y * 120.0f / s.z);
    if (sx < 0 || sx >= 240 || sy < 0 || sy >= 240) { resetStar(s); continue; }
    uint8_t brightness = (uint8_t)((1.0f - s.z / 240.0f) * 220 + 35);
    int radius = s.z < 80 ? 2 : 1;
    gfx->fillCircle(sx, sy, radius, grey(brightness));
    s.px = sx; s.py = sy;
  }
  drawTitle();

  // Only print when RAM actually changes - catches every event without flooding serial
  static uint32_t lastFree = 0;
  uint32_t free = ESP.getFreeHeap();
  if (free != lastFree) {
    reportRAM();
    lastFree = free;
  }
}

[RAM] heap changed: 177092 -> 176936 bytes (delta: -156)
[RAM] heap changed: 176936 -> 176928 bytes (delta: -8)
[RAM] heap changed: 176928 -> 176920 bytes (delta: -8)
[RAM] heap changed: 176920 -> 176912 bytes (delta: -8)
[RAM] heap changed: 176912 -> 176920 bytes (delta: +8)
[RAM] heap changed: 176920 -> 176888 bytes (delta: -32)

/*
 * We stand on the shoulders of giants when we build
 * with knowledge gained from others' efforts.
 * That doesn't make us giants. Be humble.
 * Create with care. Open source is the way.
 *

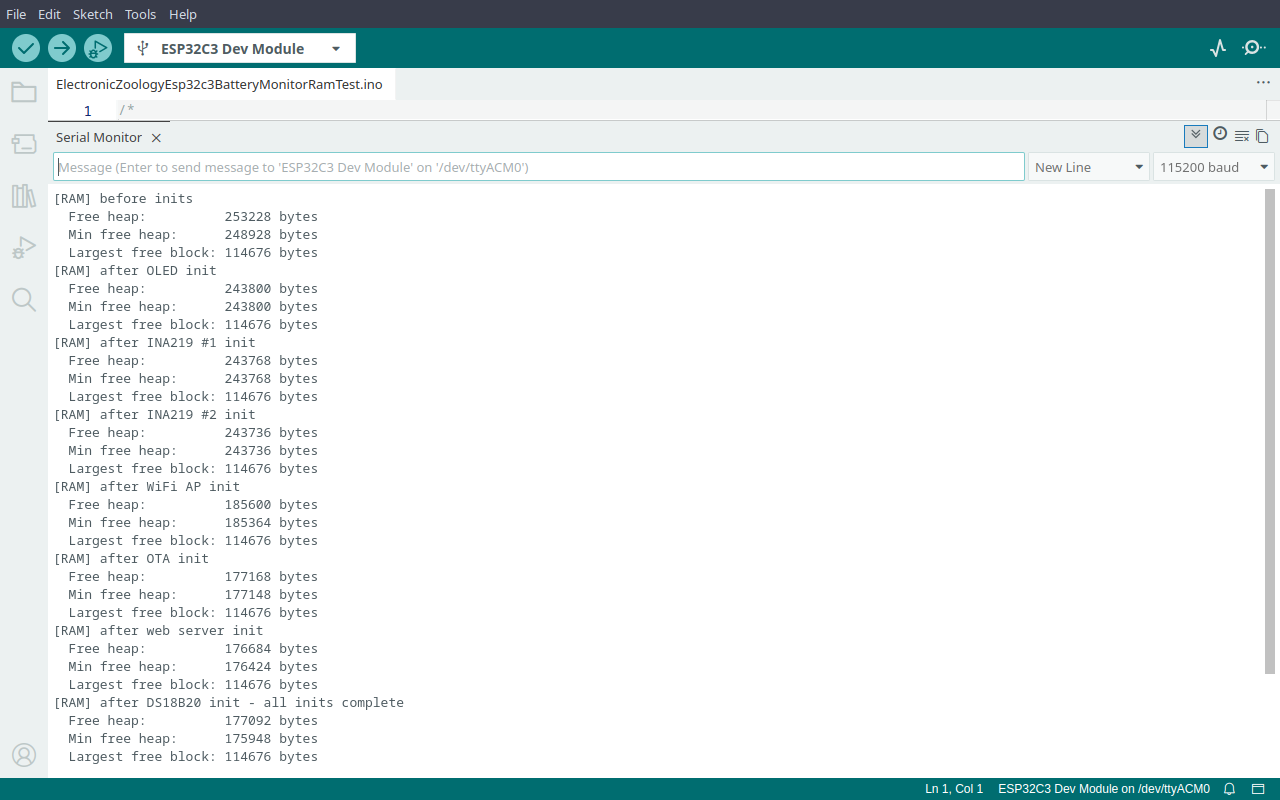

 * Dual-Channel Battery Monitor + RAM Meter
 * -----------------------------------------
 * Based on Esp32c3BatteryChargerbuzzerCmatrix.
 * Adds boot RAM report and change-only heap monitoring
 * to measure the library cost of INA219 + OLED + WiFi + OTA.
 *
 * Hardware: ESP32-C3 Super Mini
 *           2x INA219 current sensors + SSD1306 128x64 OLED
 *           1x DS18B20 temperature sensor
 *
 * Wiring:
 *   SDA        -> GPIO6
 *   SCL        -> GPIO7
 *   DS18B20    -> GPIO5  (4.7k pull-up to 3.3V required)
 *   GPIO8 is the onboard LED - kept free from I2C
 *
 * OTA: AP mode - connect laptop to "Battery Monitor" WiFi, then upload from IDE.
 *   AP SSID  : Battery Monitor
 *   AP Pass  : 12345678
 *   OTA Pass : otapass
 *
 * Screen rotation:
 *   [Stats 5s] -> [Level 3s] -> [Temp 3s] -> [Matrix 10s] -> [Warning 2s if active] -> repeat
 *
 * Open source - MIT Licence
 * Electronic Zoology - field notes from the garage
 * https://electroniczoology.com/guides/how-esp32-ram-works
 */

#include <Wire.h>
#include <Adafruit_INA219.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <OneWire.h>
#include <DallasTemperature.h>
#include <WiFi.h>
#include <ArduinoOTA.h>
#include <WebServer.h>
#include <esp_wifi.h>

#define AP_SSID          "Battery Monitor"
#define AP_PASS          "12345678"
#define OTA_PASS         "otapass"
#define AP_IP_OCTET3     5
#define AP_IP_OCTET4     1

#define PIN_SDA       6
#define PIN_SCL       7
#define PIN_LED       8
#define PIN_TEMP      5
#define PIN_RESET     4
#define PIN_BUZZER    1

const float TEMP_WARN_C = 60.0f;

#define SCREEN_WIDTH  128
#define SCREEN_HEIGHT  64
#define SCREEN_RIGHT  (SCREEN_WIDTH - 1)
#define OLED_RESET     -1
#define OLED_ADDR      0x3C

const float         CURRENT_LIMIT_mA    = 850.0f;
const unsigned long OVERCURRENT_TIME_MS = 3000UL;
const unsigned long STATS_TIME_MS       = 5000UL;
const unsigned long LEVEL_TIME_MS       = 3000UL;
const unsigned long TEMP_TIME_MS        = 3000UL;
const unsigned long MATRIX_TIME_MS      = 10000UL;
const unsigned long WARNING_TIME_MS     = 2000UL;

const float BATT_EMPTY_V = 3.0f;
const float BATT_FULL_V  = 4.2f;

Adafruit_INA219  ina1(0x40);
Adafruit_INA219  ina2(0x41);
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
WebServer        server(80);
OneWire          oneWire(PIN_TEMP);
DallasTemperature tempSensor(&oneWire);

float lastTempC   = 0.0f;
bool  tempFault   = false;
bool  tempWarning = false;
bool  tempBuzzed  = false;

struct OverCurrentState {
  unsigned long startTime = 0;
  bool timing    = false;
  bool triggered = false;
};
OverCurrentState oc1, oc2;

unsigned long cycleStart       = 0;
bool          lastWarningState = false;

unsigned long matrixBuzzNext   = 0;
#define MATRIX_COLS   21
#define MATRIX_ROWS    8
int8_t  matrixHead[MATRIX_COLS];
int8_t  matrixLen[MATRIX_COLS];
unsigned long matrixLastUpdate = 0;
const unsigned long MATRIX_STEP_MS = 80;

struct ChannelReading { float loadVoltage_V, current_mA, power_W; };
ChannelReading lastCh1 = {0,0,0};
ChannelReading lastCh2 = {0,0,0};

// ===== RAM monitoring =====
static uint32_t lastReportedHeap = 0;

void reportRam(const char* label) {
  Serial.printf("[RAM] %s\n", label);
  Serial.printf("  Free heap:          %u bytes\n", ESP.getFreeHeap());
  Serial.printf("  Min free heap:      %u bytes\n", ESP.getMinFreeHeap());
  Serial.printf("  Largest free block: %u bytes\n", ESP.getMaxAllocHeap());
}
// ==========================

ChannelReading readChannel(Adafruit_INA219 &ina) {
  ChannelReading r;
  float busV  = ina.getBusVoltage_V();
  float shunt = ina.getShuntVoltage_mV() / 1000.0f;
  r.loadVoltage_V = busV + shunt;
  r.current_mA    = max(0.0f, ina.getCurrent_mA());
  r.power_W       = ina.getPower_mW() / 1000.0f;
  return r;
}

void updateOverCurrent(float mA, OverCurrentState &oc) {
  if (mA > CURRENT_LIMIT_mA) {
    if (!oc.timing) { oc.timing = true; oc.startTime = millis(); }
    else if (!oc.triggered && (millis() - oc.startTime >= OVERCURRENT_TIME_MS)) oc.triggered = true;
  } else { oc.timing = false; oc.triggered = false; }
}

int voltageToPercent(float v) {
  return (int)roundf(constrain(((v - BATT_EMPTY_V) / (BATT_FULL_V - BATT_EMPTY_V)) * 100.0f, 0.0f, 100.0f));
}

void drawBar(int x, int y, int w, int h, float val, float max) {
  if (max <= 0 || w < 3 || h < 3) return;
  int fill = constrain((int)((constrain(val,0,max)/max)*(w-2)),0,w-2);
  display.drawRect(x,y,w,h,SSD1306_WHITE);
  if (fill > 0) display.fillRect(x+1,y+1,fill,h-2,SSD1306_WHITE);
}

char apIPStr[16] = "";
void drawIPFooter() {
  display.setCursor(SCREEN_WIDTH-(strlen(apIPStr)*6), 56);
  display.print(apIPStr);
}

void drawStatsScreen(const ChannelReading &ch1, const ChannelReading &ch2) {
  display.setCursor(0,0);  display.print(F("BATT"));
  display.setCursor(30,0); display.print(F("V"));
  display.setCursor(56,0); display.print(F("mA"));
  display.setCursor(92,0); display.print(F("W"));
  display.setCursor(120,0);display.print(F("!"));
  display.drawLine(0,10,SCREEN_RIGHT,10,SSD1306_WHITE);
  display.setCursor(0,18);  display.print(F("1"));
  display.setCursor(18,18); display.print(ch1.loadVoltage_V,2);
  display.setCursor(52,18); display.print(ch1.current_mA,0);
  display.setCursor(90,18); display.print(ch1.power_W,1);
  if (oc1.triggered) { display.setCursor(120,18); display.print(F("*")); }
  display.setCursor(0,34);  display.print(F("2"));
  display.setCursor(18,34); display.print(ch2.loadVoltage_V,2);
  display.setCursor(52,34); display.print(ch2.current_mA,0);
  display.setCursor(90,34); display.print(ch2.power_W,1);
  if (oc2.triggered) { display.setCursor(120,34); display.print(F("*")); }
  display.drawLine(0,46,SCREEN_RIGHT,46,SSD1306_WHITE);
  display.setCursor(0,56); display.print(F("mAmax ")); display.print(CURRENT_LIMIT_mA,0);
  drawIPFooter();
}

void drawLevelScreen(const ChannelReading &ch1, const ChannelReading &ch2) {
  int p1=voltageToPercent(ch1.loadVoltage_V), p2=voltageToPercent(ch2.loadVoltage_V);
  display.setCursor(0,0);  display.print(F("Battery 1"));
  if (oc1.triggered) display.print(F("*"));
  display.setCursor(60,0); display.print(p1); display.print(F("%"));
  drawBar(0,10,SCREEN_WIDTH,10,p1,100);
  display.setCursor(0,28); display.print(F("Battery 2"));
  if (oc2.triggered) display.print(F("*"));
  display.setCursor(60,28); display.print(p2); display.print(F("%"));
  drawBar(0,38,SCREEN_WIDTH,10,p2,100);
  drawIPFooter();
}

void drawTempScreen() {
  display.setCursor(0,0); display.println(F("HEATSINK TEMP"));
  display.drawLine(0,10,SCREEN_RIGHT,10,SSD1306_WHITE);
  if (tempFault) {
    display.setCursor(0,20); display.println(F("SENSOR ERROR"));
  } else {
    display.setTextSize(2); display.setCursor(0,18);
    display.print(lastTempC,1); display.print(F(" C"));
    display.setTextSize(1); display.setCursor(0,42);
    if (tempWarning) { display.print(F("! OVER ")); display.print(TEMP_WARN_C,0); display.print(F("C")); }
    else { display.print(F("Warn at ")); display.print(TEMP_WARN_C,0); display.print(F("C  OK")); }
  }
  drawIPFooter();
}

void initMatrix() {
  for (int c=0;c<MATRIX_COLS;c++) { matrixHead[c]=-1; matrixLen[c]=random(3,MATRIX_ROWS+1); }
  matrixLastUpdate=0; matrixBuzzNext=0;
}

void drawMatrixScreen() {
  unsigned long now=millis();
  if (now-matrixLastUpdate<MATRIX_STEP_MS) return;
  matrixLastUpdate=now;
  display.clearDisplay();
  for (int c=0;c<MATRIX_COLS;c++) {
    if (matrixHead[c]<0) { if (random(10)<3) { matrixHead[c]=0; matrixLen[c]=random(3,MATRIX_ROWS+1); } continue; }
    for (int r=matrixHead[c];r>=0&&r>matrixHead[c]-matrixLen[c];r--)
      if (r<MATRIX_ROWS) { display.setCursor(c*6,r*8); display.setTextColor(SSD1306_WHITE); display.print((char)(random(33,127))); }
    matrixHead[c]++;
    if (matrixHead[c]-matrixLen[c]>=MATRIX_ROWS) matrixHead[c]=-1;
  }
}

void drawWarningScreen(const ChannelReading &ch1, const ChannelReading &ch2) {
  display.setCursor(0,0); display.println(F("WARNING STATUS"));
  display.drawLine(0,10,SCREEN_RIGHT,10,SSD1306_WHITE);
  display.setCursor(0,18); display.print(F("CH1: "));
  if (oc1.triggered) { display.print(F("* ")); display.print(ch1.current_mA,0); display.print(F("mA")); } else display.print(F("OK"));
  display.setCursor(0,28); display.print(F("CH2: "));
  if (oc2.triggered) { display.print(F("* ")); display.print(ch2.current_mA,0); display.print(F("mA")); } else display.print(F("OK"));
  display.setCursor(0,38); display.print(F("TMP: "));
  if (tempFault) display.print(F("SENSOR ERR"));
  else if (tempWarning) { display.print(F("* ")); display.print(lastTempC,1); display.print(F("C")); }
  else display.print(F("OK"));
  display.setCursor(0,50); display.print(F("mAmax")); display.print(CURRENT_LIMIT_mA,0);
  display.print(F("mA/")); display.print(OVERCURRENT_TIME_MS/1000UL); display.print(F("s"));
  drawIPFooter();
}

void handleData() {
  String json = "{";
  json += "\"ch1_v\":" + String(lastCh1.loadVoltage_V,2) + ",";
  json += "\"ch1_ma\":" + String(lastCh1.current_mA,1) + ",";
  json += "\"ch1_w\":" + String(lastCh1.power_W,2) + ",";
  json += "\"ch1_pct\":" + String(voltageToPercent(lastCh1.loadVoltage_V)) + ",";
  json += "\"ch1_oc\":\"" + String(oc1.triggered?"WARNING":"OK") + "\",";
  json += "\"ch2_v\":" + String(lastCh2.loadVoltage_V,2) + ",";
  json += "\"ch2_ma\":" + String(lastCh2.current_mA,1) + ",";
  json += "\"ch2_w\":" + String(lastCh2.power_W,2) + ",";
  json += "\"ch2_pct\":" + String(voltageToPercent(lastCh2.loadVoltage_V)) + ",";
  json += "\"ch2_oc\":\"" + String(oc2.triggered?"WARNING":"OK") + "\",";
  json += "\"temp_c\":" + (tempFault?String("null"):String(lastTempC,1)) + ",";
  json += "\"temp_st\":\"" + String(tempFault?"FAULT":(tempWarning?"WARNING":"OK")) + "\"";
  json += "}";
  server.send(200,"application/json",json);
}

void chimeReboot() {
  tone(PIN_BUZZER,523,120); delay(150);
  tone(PIN_BUZZER,659,120); delay(150);
  tone(PIN_BUZZER,784,200); delay(250);
  noTone(PIN_BUZZER);
}
void alarmTemp() {
  for (int i=0;i<3;i++) { tone(PIN_BUZZER,1000,150); delay(200); noTone(PIN_BUZZER); delay(100); }
}
void matrixBeep() { tone(PIN_BUZZER,random(200,2000),random(10,60)); }

void setup() {
  delay(1000);
  pinMode(PIN_RESET,INPUT_PULLUP);
  pinMode(PIN_BUZZER,OUTPUT);
  Serial.begin(115200);
  delay(2000);

  reportRam("before inits");

  chimeReboot();
  Wire.begin(PIN_SDA,PIN_SCL);
  Wire.setClock(400000);

  display.begin(SSD1306_SWITCHCAPVCC,OLED_ADDR);
  reportRam("after OLED init");

  display.clearDisplay();
  display.setTextColor(SSD1306_WHITE);
  display.setTextSize(1);

  ina1.begin();
  reportRam("after INA219 #1 init");

  ina2.begin();
  reportRam("after INA219 #2 init");

  display.clearDisplay(); display.setCursor(0,0);
  display.println(F("Starting AP...")); display.display();

  WiFi.mode(WIFI_AP);
  IPAddress apIP(192,168,AP_IP_OCTET3,AP_IP_OCTET4);
  WiFi.softAPConfig(apIP,apIP,IPAddress(255,255,255,0));
  WiFi.softAP(AP_SSID,AP_PASS);
  esp_wifi_set_ps(WIFI_PS_NONE);
  WiFi.setTxPower(WIFI_POWER_11dBm);
  reportRam("after WiFi AP init");

  WiFi.softAPIP().toString().toCharArray(apIPStr,sizeof(apIPStr));

  ArduinoOTA.setPassword(OTA_PASS);
  ArduinoOTA.onStart([](){
    display.clearDisplay(); display.setCursor(0,0);
    display.println(F("OTA Update...")); display.display();
  });
  ArduinoOTA.onProgress([](unsigned int progress, unsigned int total){
    int pct=progress/(total/100);
    display.clearDisplay(); display.setCursor(0,0); display.println(F("OTA Update..."));
    drawBar(0,20,SCREEN_WIDTH,12,pct,100);
    display.setCursor(0,40); display.print(pct); display.print(F("%")); display.display();
  });
  ArduinoOTA.onEnd([](){
    display.clearDisplay(); display.setCursor(0,0);
    display.println(F("OTA done!")); display.println(F("Rebooting...")); display.display();
  });
  ArduinoOTA.onError([](ota_error_t error){ (void)error; });
  ArduinoOTA.begin();
  reportRam("after OTA init");

  server.on("/",     handleData);
  server.on("/data", handleData);
  server.begin();
  reportRam("after web server init");

  display.clearDisplay(); display.setCursor(0,0);
  display.println(F("Battery Monitor Live"));
  display.setCursor(0,16); display.print(F("AP: ")); display.println(F(AP_SSID));
  display.setCursor(0,32); display.print(F("IP: ")); display.println(WiFi.softAPIP());
  display.display(); delay(2000);

  tempSensor.begin();
  int attempts=0;
  while (tempSensor.getDeviceCount()==0 && attempts<5) { delay(200); tempSensor.begin(); attempts++; }
  if (tempSensor.getDeviceCount()==0) tempFault=true;
  reportRam("after DS18B20 init - all inits complete");

  lastReportedHeap=ESP.getFreeHeap();
  initMatrix();
  cycleStart=millis();
}

void loop() {
  if (digitalRead(PIN_RESET)==LOW) {
    delay(50);
    if (digitalRead(PIN_RESET)==LOW) {
      display.clearDisplay(); display.setCursor(0,0);
      display.println(F("Rebooting...")); display.display(); delay(500); ESP.restart();
    }
  }

  ArduinoOTA.handle();
  server.handleClient();

  // Change-only heap monitor
  uint32_t currentHeap=ESP.getFreeHeap();
  if (currentHeap!=lastReportedHeap) {
    Serial.printf("[RAM] heap changed: %u -> %u bytes (delta: %d)\n",
      lastReportedHeap, currentHeap, (int32_t)currentHeap-(int32_t)lastReportedHeap);
    lastReportedHeap=currentHeap;
  }

  static unsigned long lastSensorRead=0;
  if (millis()-lastSensorRead>=1000UL) {
    lastSensorRead=millis();
    ChannelReading ch1=readChannel(ina1), ch2=readChannel(ina2);
    lastCh1=ch1; lastCh2=ch2;
    updateOverCurrent(ch1.current_mA,oc1);
    updateOverCurrent(ch2.current_mA,oc2);
    if (tempWarning && !tempBuzzed) { alarmTemp(); tempBuzzed=true; }
    if (!tempWarning) tempBuzzed=false;
  }

  bool warningActive=oc1.triggered||oc2.triggered||tempWarning;
  if (warningActive!=lastWarningState) { cycleStart=millis(); lastWarningState=warningActive; }

  unsigned long cycleLength=warningActive
    ?(STATS_TIME_MS+LEVEL_TIME_MS+TEMP_TIME_MS+MATRIX_TIME_MS+WARNING_TIME_MS)
    :(STATS_TIME_MS+LEVEL_TIME_MS+TEMP_TIME_MS+MATRIX_TIME_MS);
  unsigned long cyclePos=millis()-cycleStart;

  if (cyclePos>=cycleLength) {
    cycleStart=millis(); cyclePos=0; initMatrix();
    ChannelReading ch1=readChannel(ina1), ch2=readChannel(ina2);
    lastCh1=ch1; lastCh2=ch2;
    updateOverCurrent(ch1.current_mA,oc1); updateOverCurrent(ch2.current_mA,oc2);
    if (!tempFault) {
      tempSensor.requestTemperatures();
      float t=tempSensor.getTempCByIndex(0);
      if (t==DEVICE_DISCONNECTED_C) { tempFault=true; tempWarning=true; }
      else { lastTempC=t; tempWarning=(t>=TEMP_WARN_C); }
    }
  }

  display.setTextSize(1); display.setTextColor(SSD1306_WHITE);
  unsigned long matrixStart=STATS_TIME_MS+LEVEL_TIME_MS+TEMP_TIME_MS;
  static unsigned long lastDisplayUpdate=0;
  bool timeToUpdate=(millis()-lastDisplayUpdate>=1000UL);
  if (timeToUpdate) lastDisplayUpdate=millis();

  if      (cyclePos<STATS_TIME_MS)
    { if (timeToUpdate) { display.clearDisplay(); drawStatsScreen(lastCh1,lastCh2); display.display(); } }
  else if (cyclePos<STATS_TIME_MS+LEVEL_TIME_MS)
    { if (timeToUpdate) { display.clearDisplay(); drawLevelScreen(lastCh1,lastCh2); display.display(); } }
  else if (cyclePos<matrixStart)
    { if (timeToUpdate) { display.clearDisplay(); drawTempScreen(); display.display(); } }
  else if (cyclePos<matrixStart+MATRIX_TIME_MS) {
    drawMatrixScreen(); display.display();
    if (millis()>=matrixBuzzNext) { matrixBeep(); matrixBuzzNext=millis()+random(100,400); }
  } else
    { if (timeToUpdate) { display.clearDisplay(); drawWarningScreen(lastCh1,lastCh2); display.display(); } }

  delay(50);
}
